The Original Treble Bezels By TubeAmpology

INSTALLATION INSTRUCTIONS

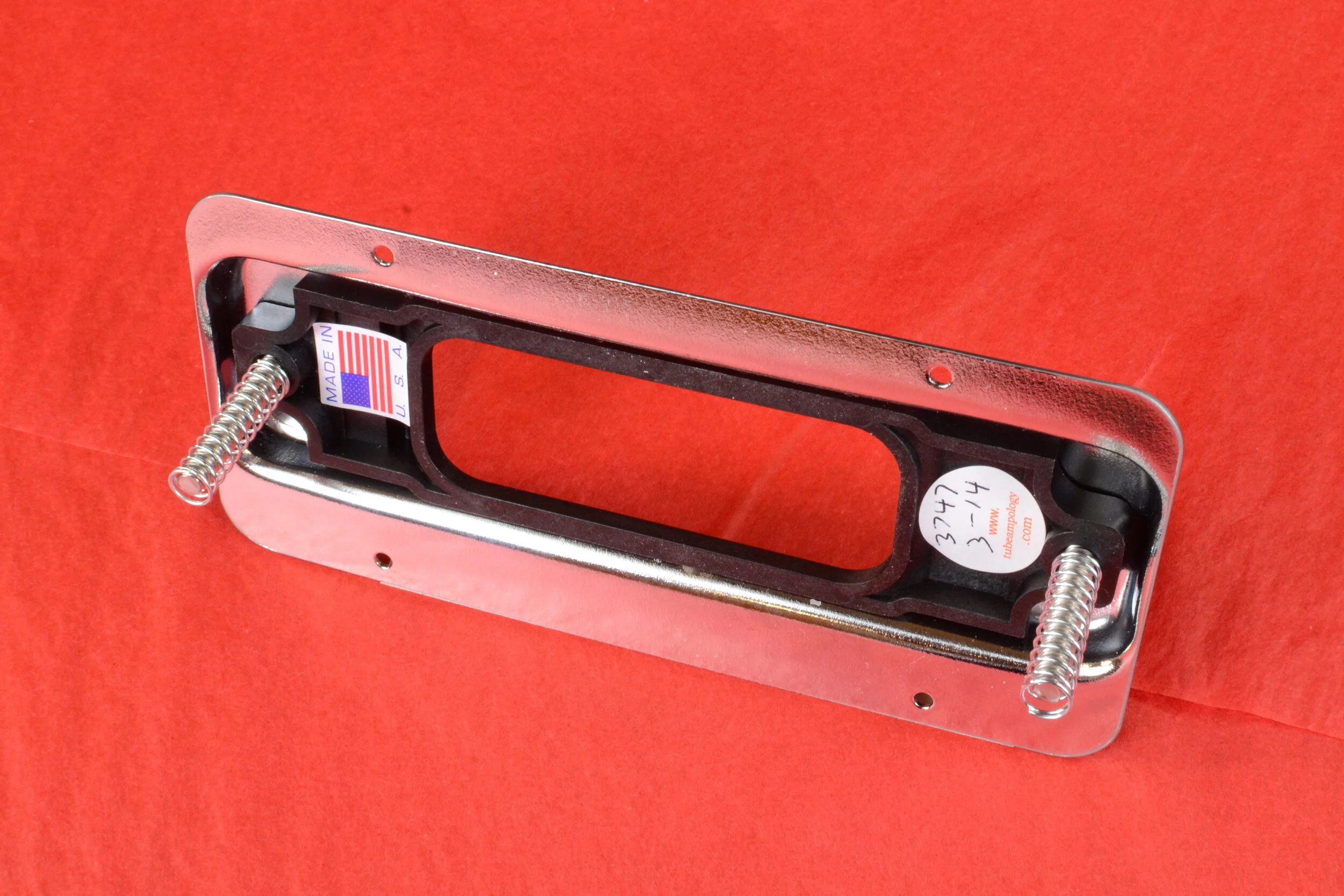

This is how the Treble Bezel needs to fit into the stock chrome surround, and what the assembly should look like before it's screwed to the pickup base. Use the factory screws and springs. No additional parts are needed to install the Treble Bezel.

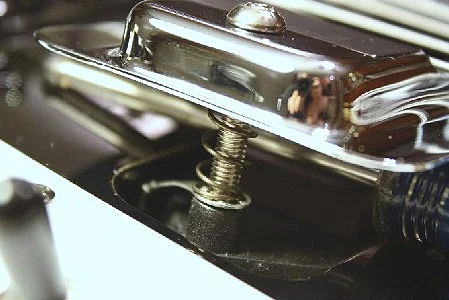

Note that the position of the springs is in opposite order compared to the factory pickup cover. The spring pressure now pushes the Bezel up into the stock chrome surround.

4001V63/C64 TREBLE BEZEL INSTRUCTIONS

Installation of the bezel itself is identical to the 4001 and 4003 series bezels except for the additional instructions shown regarding the horseshoe pickup assembly.

TREBLE PICKUP CHROME RING INSTRUCTIONS

It’s highly recommended that you test fit the Treble Pickup Bezel before removing the 3M VHB protective film. This way you can see if there are any fit issues without the bezel sticking to the pickup, it will also familiarize you with the process of positioning and installing the pickup bezel. Once it’s on, it ON! The particular 3M VHB chosen for this application has extremely strong bonding strength that’s almost instant once pressed on.

TREBLE BEZEL PICKUP OPENINGS
